WES Series Digital-display Hydraulic Universal Tester

2018-05-22 14:34admin

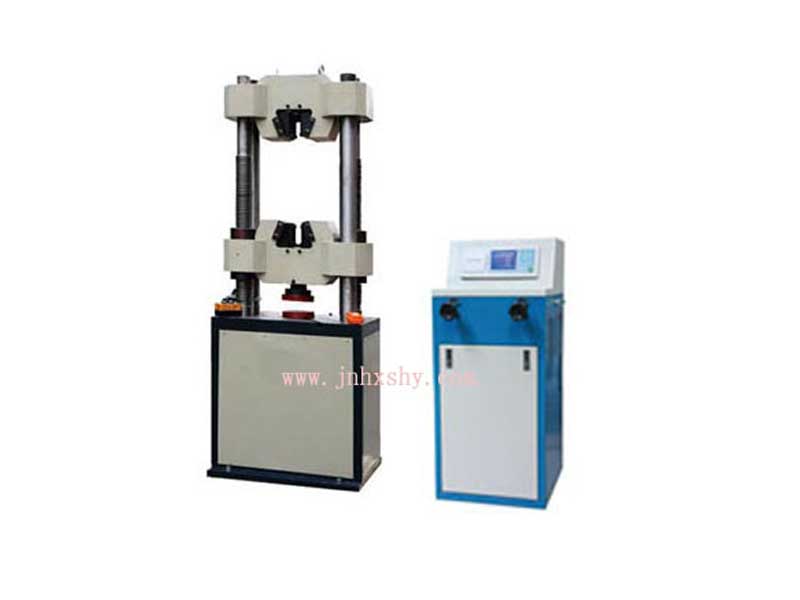

WES Series Digital-display Hydraulic Universal Tester

WES series digital-display hydraulic universal testing machine is mainly used for tensile, compression, bending, cutting and other mechanical property tests of metal and non-metal materials, in accordance with the GB/T228-2010 standards. The tester can exactly measure the compressive strength, yield strength, non-proportional extension strength, percentage elongation and elastic modulus and other mechanical properties. It can also be used to do compression tests for plastic, concrete, cement and other non-metal materials. Besides, the testing machine can also be used to test various performances of rubber belts, chains, wire ropes, welding rods, tiles and different components.
    The machine uses electronic technology to measure testing force and displays force-time curve, testing force, force peak value and yield force of materials with significant yield features in a clear and simple way. The testing results can be printed out. This testing machine is ideal detection equipment for industrial and mining enterprises, research institutes, colleges, engineering quality supervision stations and other departments.



Specifications WES-100B WES-300B WES-600B WES-1000B
Maximum testing force
 100kN
300kN
600kN
1000kN
Measuring range
Equivalent
3 block
Equivalent
3 block
Equivalent
3 block
Equivalent
3 block
Force measuring range
 4%-100%F.S 4%-100%F.S 4%-100%F.S 4%-100%FS
Testing force indication relative error
≤±1%
≤±1%
≤±1%
≤±1%
Resolution
0.1kN
0.1kN
0.1kN
0.1kN
Deformation accuracy
±0.5%FS
±0.5%FS
±0.5%FS
±0.5%FS
Stretching space
550mm
 550mm 600mm 650mm
Gripping method
Hydraulic（manual） gripping
Hydraulic gripping
Hydraulic gripping
Hydraulic gripping
Diameter of
round specimens
φ6-26mm
Φ6-26mm
Φ13-40mm
 Φ13-40mm
Thickness of
flat specimens
0-15mm
0-15mm
0-30mm
0-30mm
Maximum distance between bending fulcrum
450mm
450mm
450mm
450mm
Power of oil
pump motor
1.1kW
1.1kW
1.1kW
1.1kW
Power of beam moving motor
0.75kW
0.75kW
0.75kW
0.75kW
Host dimension（mm）
 700*560*1900 700*560*1900 720*580*2000 880*660*2100
Weight
1900Kg
1900Kg
2200Kg
2700Kg
